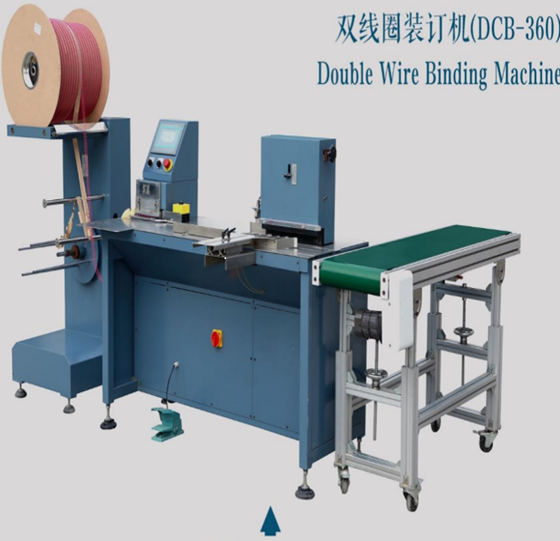

Double Wire Binding Machine(DCB-360)
- Working Speed up to 1000-1500 books per hour.
- Convenient debugging& easy operation.
- Binding size from 1/4″to 1-1/4”.
- All binding moulds are included in the machine & No need to change mold.
- Automatic cutting& closing &conveying.
Stable Delvery Time
Stable Delvery Time
Stable Delvery Time
Product Description：
Technical Data
- Binding SpeciFilecations Diameter:1/4”- 1-1/4”Pitch:3:1&2:1
- Handing of Double Wire Automatic cutting & closing & conveying
- Max.Binding Width 360 mm
- Min.Binding Width 70 mm
- Speed: 1000-1500 cycles/hour
- Size of Workable: 1000×700 mm
- Power Supply: 220V/1PH/50Hz
- Air Compressor(excluded):5-6 bar
- Dimension: 1600x1080x1300 mm
- Net Weight :300 KGS
- Dimension of Pay Off Unit: 800x450x1100 mm
- Dimension of Conveyor: 1700x500x880mm
