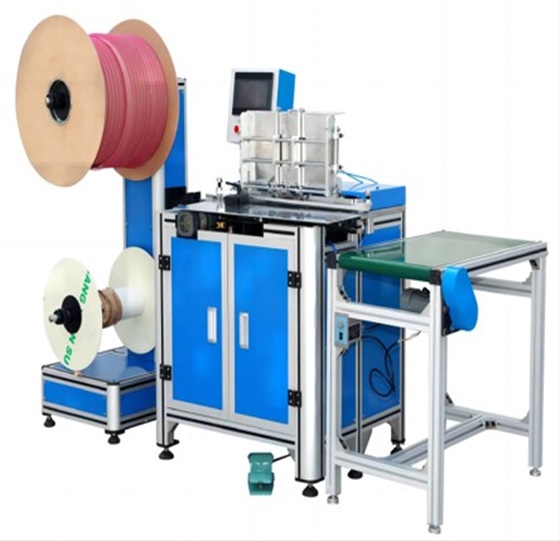

Double Wire Binding Machine(DWC-520)
This machine is mainly used for binding double wire books, notebooks, wall & table calendars, and so on. It has the functions of automatic cutting, loops counting, skip-binding, and closing. It’s your best choice for double wire bookbinding.
Stable Delvery Time
Stable Delvery Time
Stable Delvery Time
Product Description：
Techincal Data
- Binding SpeciFilecations Diameter:1/4”-7/8” Pitch:3:1&2:1
- Handing of Double Wire :Automatic cutting, insertion& closing Skip binding up to 6 steps allowed
- Max.Paper Width 520mm
- Max.Binding Width 507mm
- Min.Binding Width 75 mm
- Speed 1300-1600 cycles/hour
- Size of Workable 660x300mm
- Power Supply 220V/IPH/50Hz
- Air Compressor(excluded)5-6 bar
- Dimension 1030x770x1200 mm
- Net Weight 270 KGS
- Dimension of Pay Off Unit 490x760x1220 mm ,Net Weight of Pay Off Unit 55 KGS
Features and advantages
- Convenient debugging.
- Touch screen to operation and automatic error reminder.
- Skip-bindings at one time are available, up to 6 skip binding per time.
- Automatic hanger binding device, automatic books conveying device.
- New slide-type pneumatic components extend the machine life and ensure the machine stability
- Binding SpeciFilecations Diameter:1/4”-7/8” Pitch:3:1&2:1
- Handing of Double Wire :Automatic cutting, insertion& closing Skip binding up to 6 steps allowed
- Max.Paper Width 520mm
- Max.Binding Width 507mm
- Min.Binding Width 75 mm
- Speed 1300-1600 cycles/hour
- Size of Workable 660x300mm
- Power Supply 220V/IPH/50Hz
- Air Compressor(excluded)5-6 bar
- Dimension 1030x770x1200 mm
- Net Weight 270 KGS
- Dimension of Pay Off Unit 490x760x1220 mm ,Net Weight of Pay Off Unit 55 KGS
