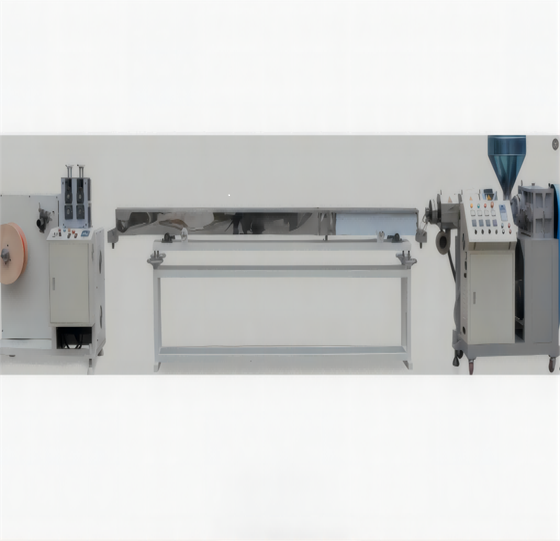

PVC Plastic Filament Extruding Machine(PFE-40)

◆Working speed up to 18 kg/hour. Easy to debug.

◆Adjust the extrusion and winding speed to change the wire diameter.

Stable Delvery Time

Product Description：

◆The extruded wire has good roundness and stable wire diameter, which improves the molding productivity and ensures the quality of plastic spiral.

◆Untrained operators can also master the skills in a short time.

PVC plastic wire diameter: 1.3mm-3.5mm
Screw diameter: φ30&φ40
φ30 speed: 7-10 kg/hour
φ40 speed: 10-18kgs
Power supply: 380V/3PH/60Hz 11KW or 220V/1PH/50Hz 8KW
Number of heating elements: 9
Screw aspect ratio: 1:25
Extruder barrel and screw material: 38CRMOAIA
Dimensions: 6200x1100x1550mm Net weight: 450KGS
